Rock Lights Switch

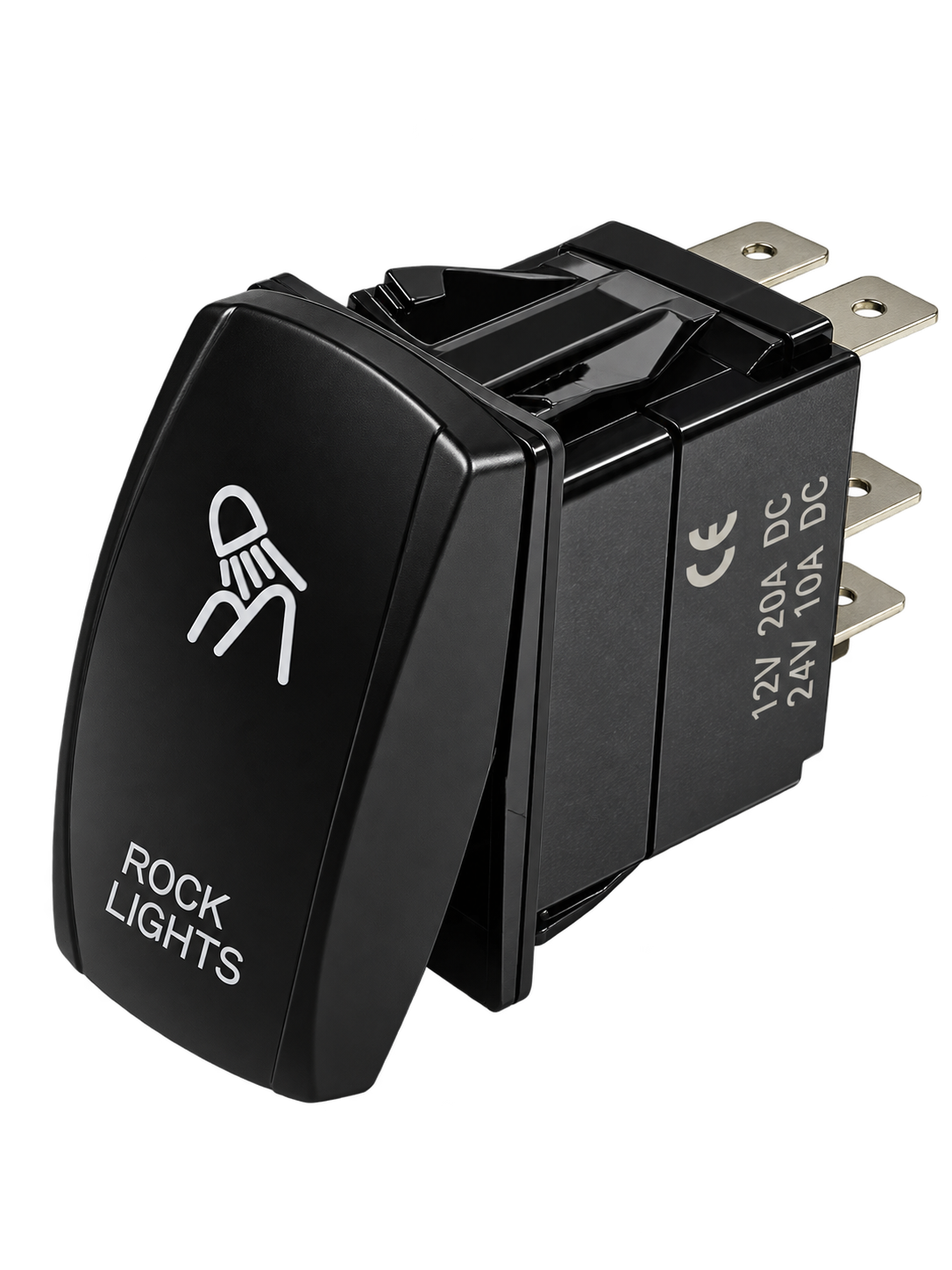

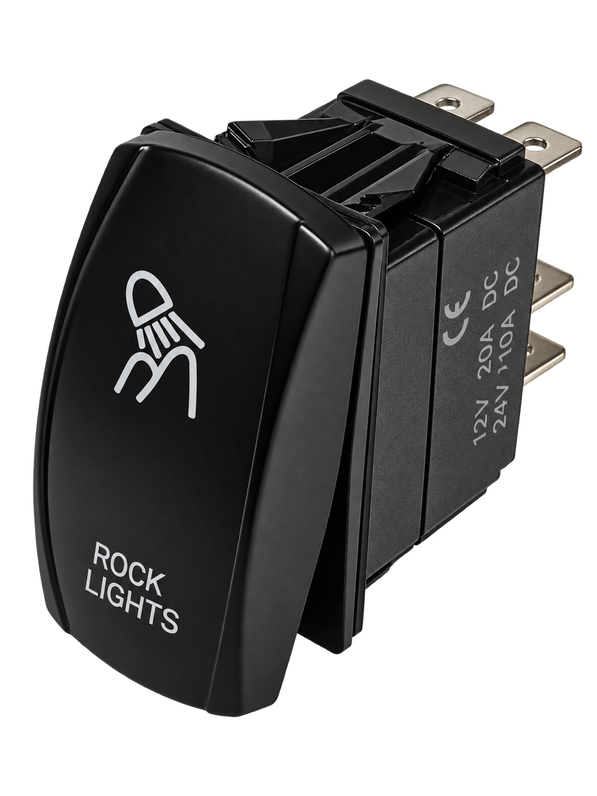

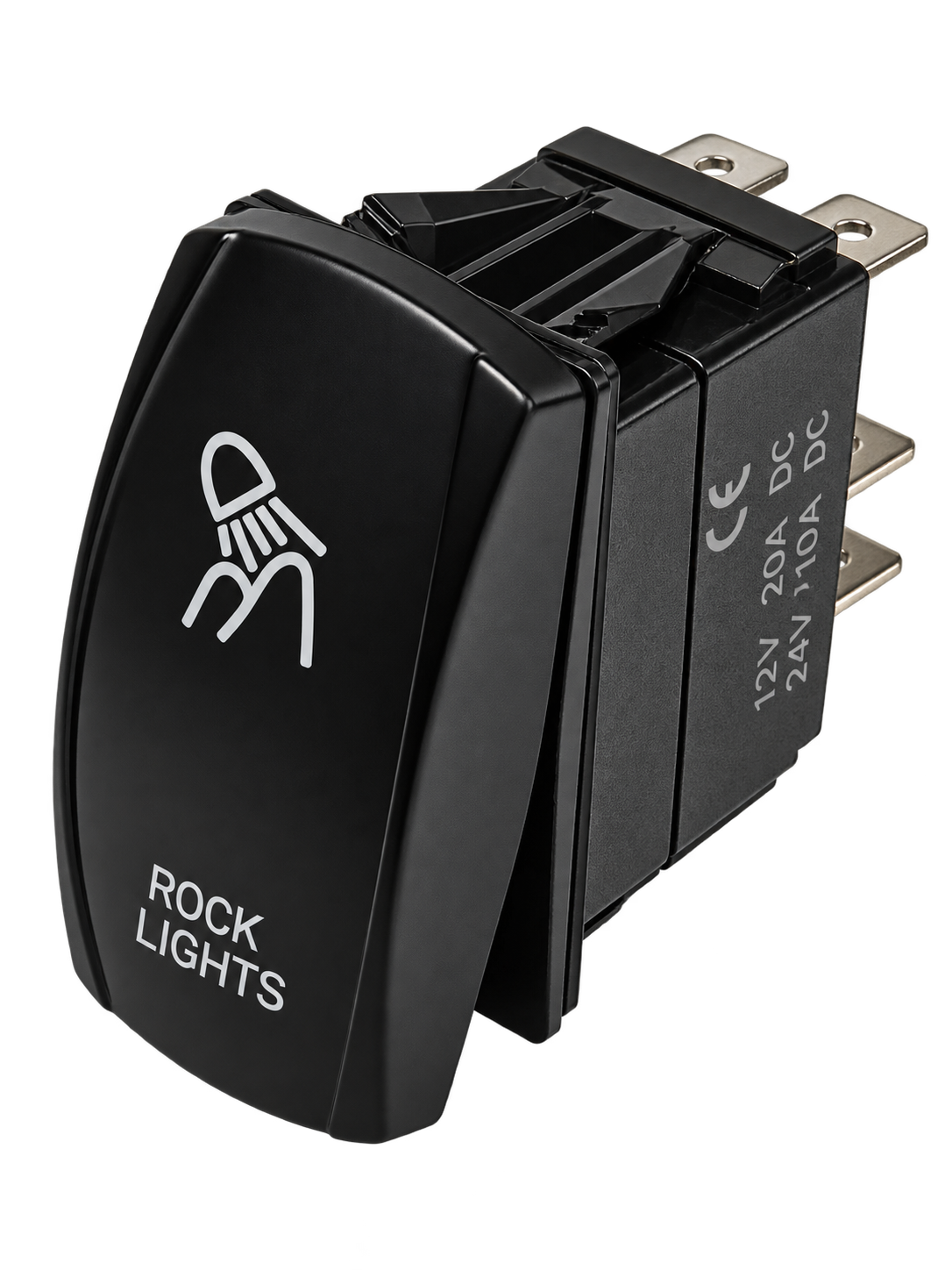

Rock Lights Rocker Switch – 5 Pin

Give your 4WD lighting setup a clean, factory-style finish with the Rock Lights Rocker Switch – 5 Pin, designed for simple and reliable control of your rock lights or other auxiliary lighting.

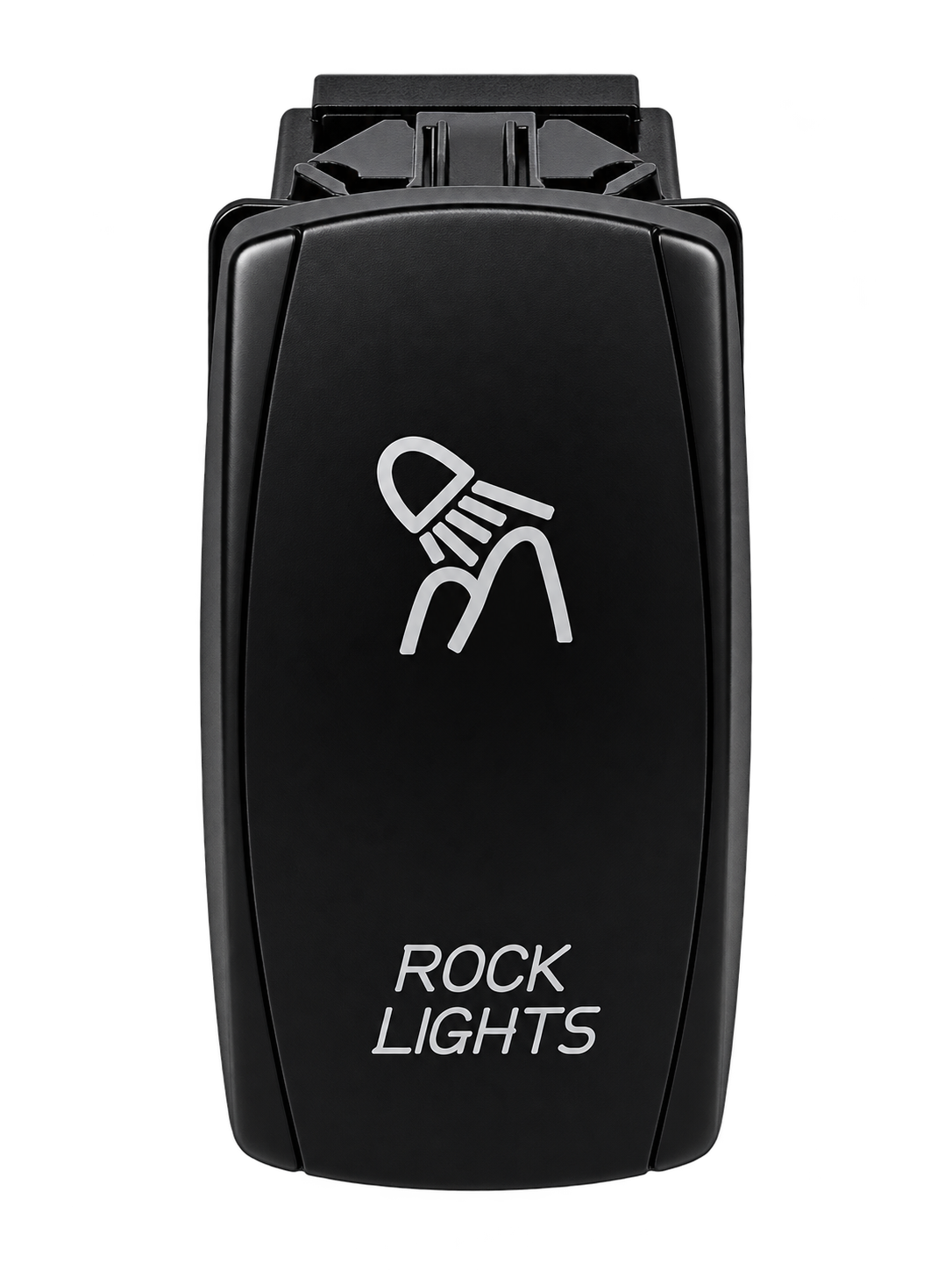

Featuring a clear Rock Lights symbol and easy-to-read labelling, this switch makes it easy to identify and operate your lighting while keeping your dash or switch panel looking neat and professional.

The 5-pin design allows the switch to be wired using either an accessory-switched power source or constant battery power, with separate illumination circuits for the upper and lower switch lights.

Features:

• 5-pin rocker switch
• Rock Lights design
• OEM-style appearance
• Dual illumination
• Can be wired to accessory or constant power

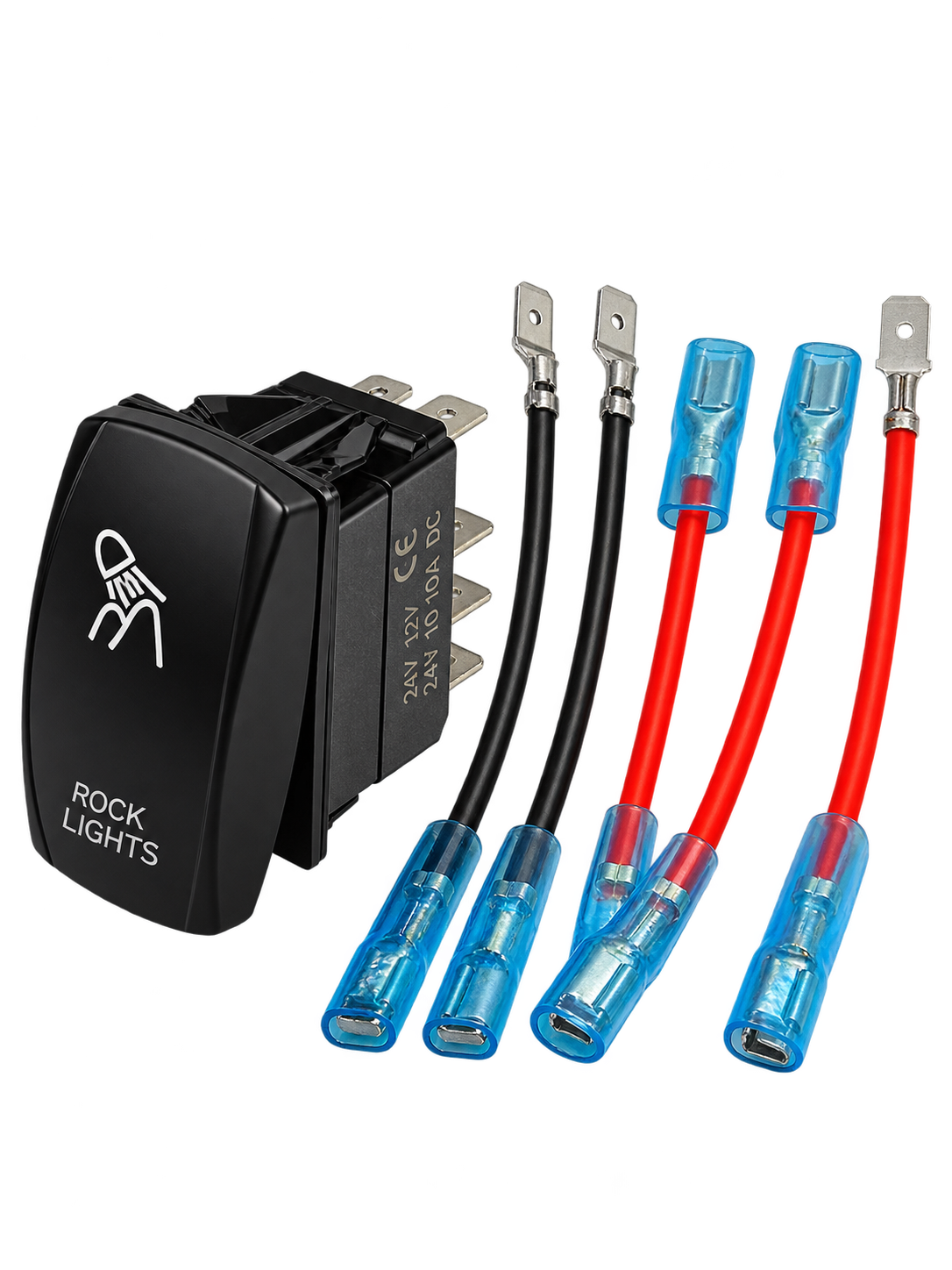

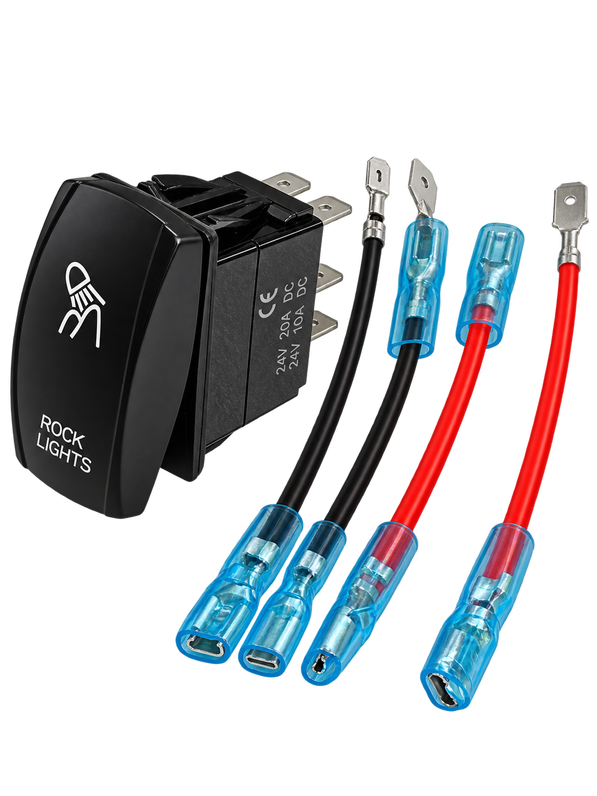

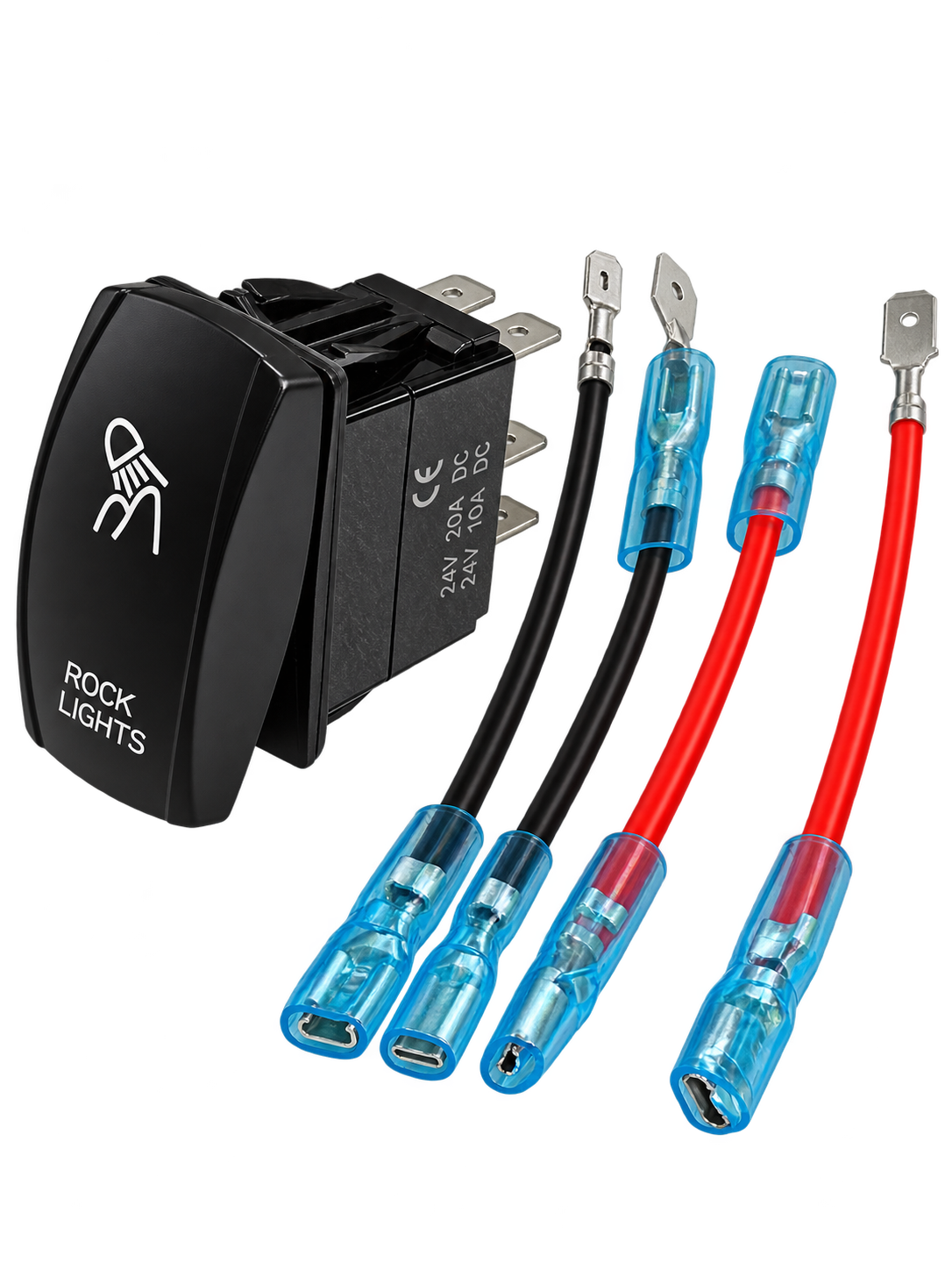

• Supplied with wiring leads/connectors
• Simple installation
• Suitable for 12V automotive and 4WD applications
• Ideal for rock lights, underbody lights and auxiliary lighting setups

Pin Functions:

• Pin 8: Upper light negative (-)
• Pin 2: Incoming power
• Pin 7: Lower light negative (-)
• Pin 6: Lower light positive (+)
• Pin 3: Output to relay, accessory or equipment

For best results, we recommend using the switch to trigger a suitable relay rather than powering high-current lighting directly.
