Rear Diff Lock Switch

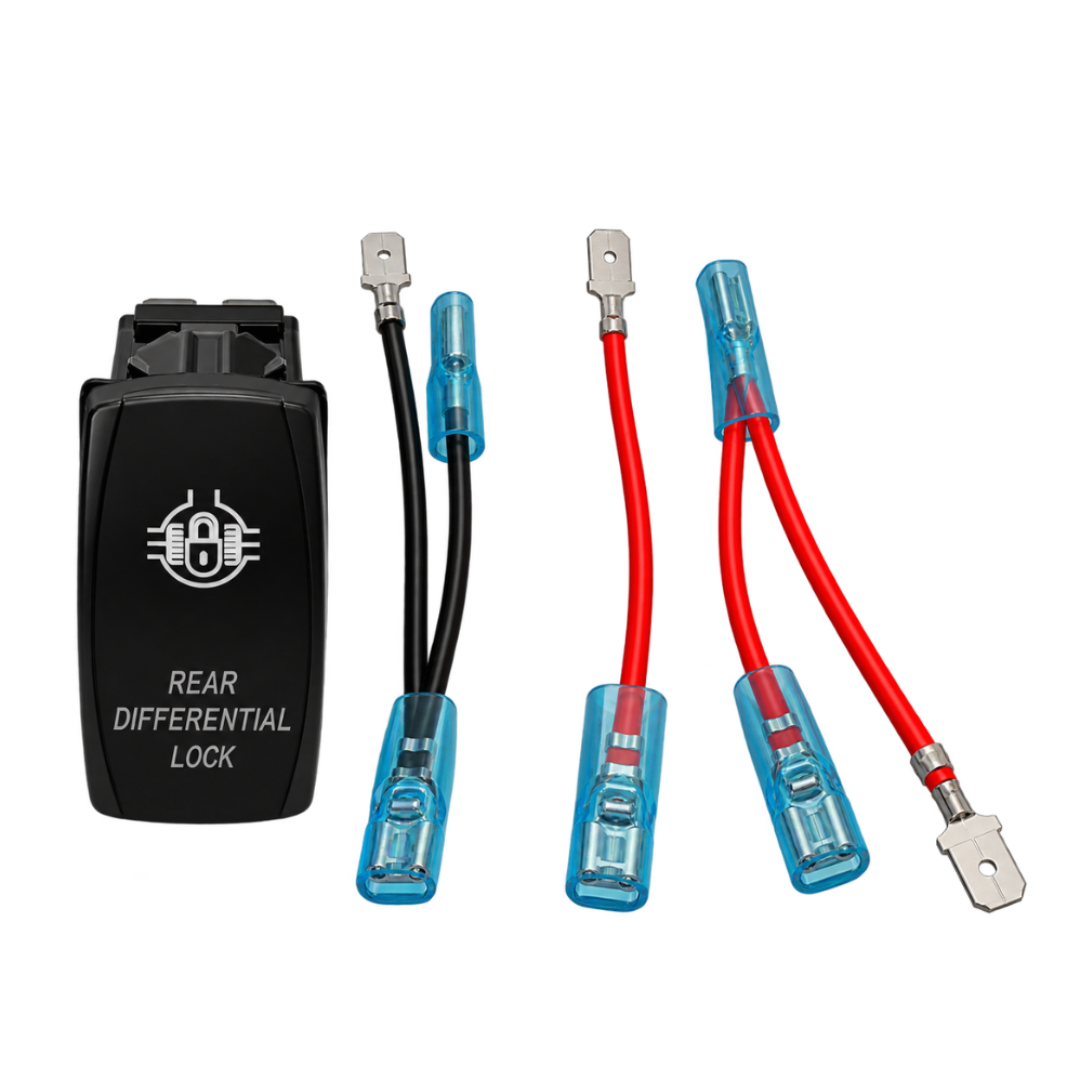

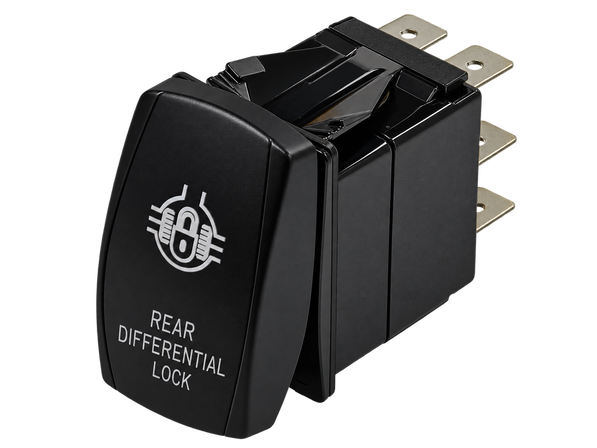

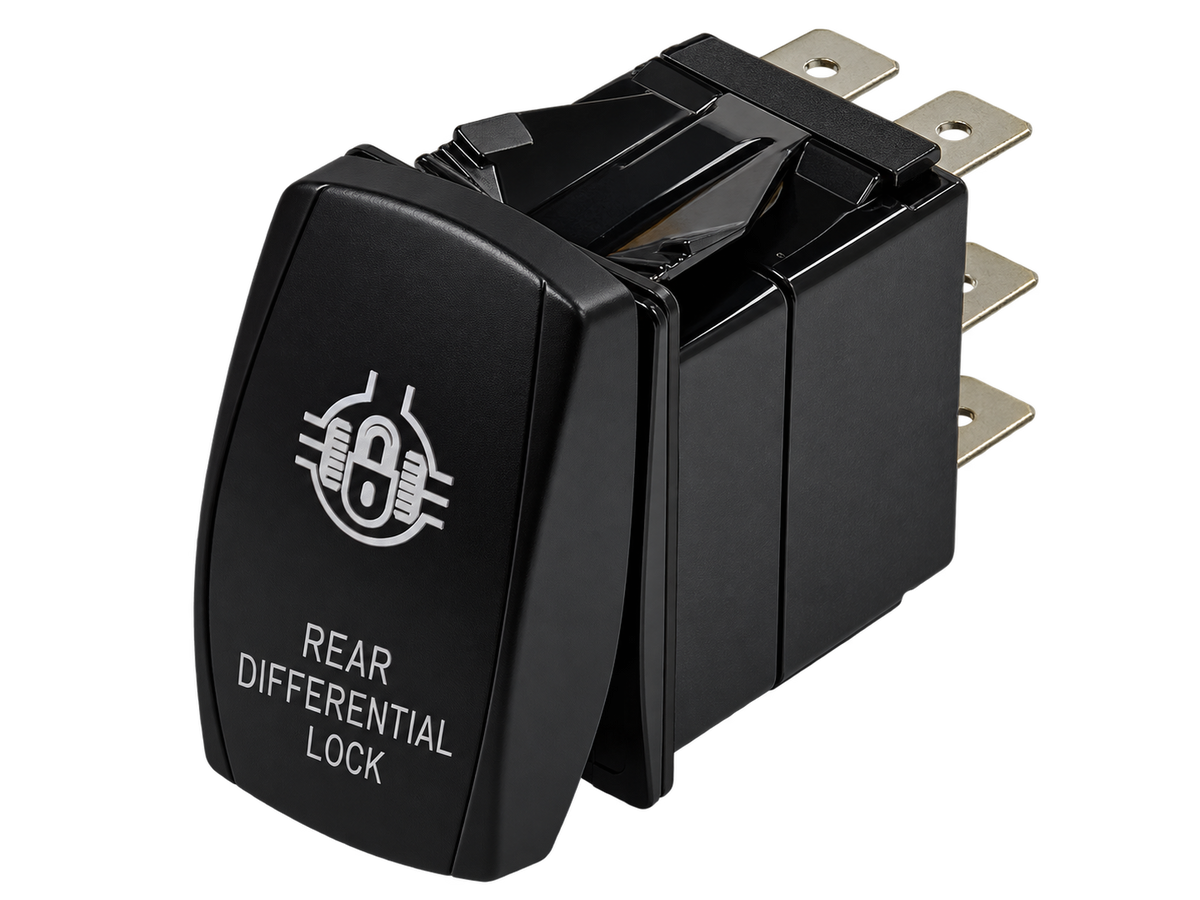

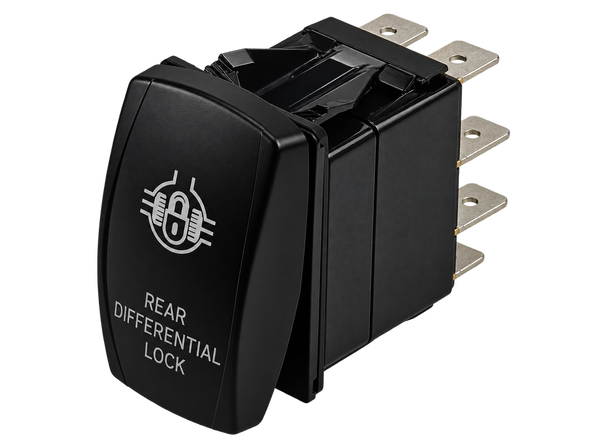

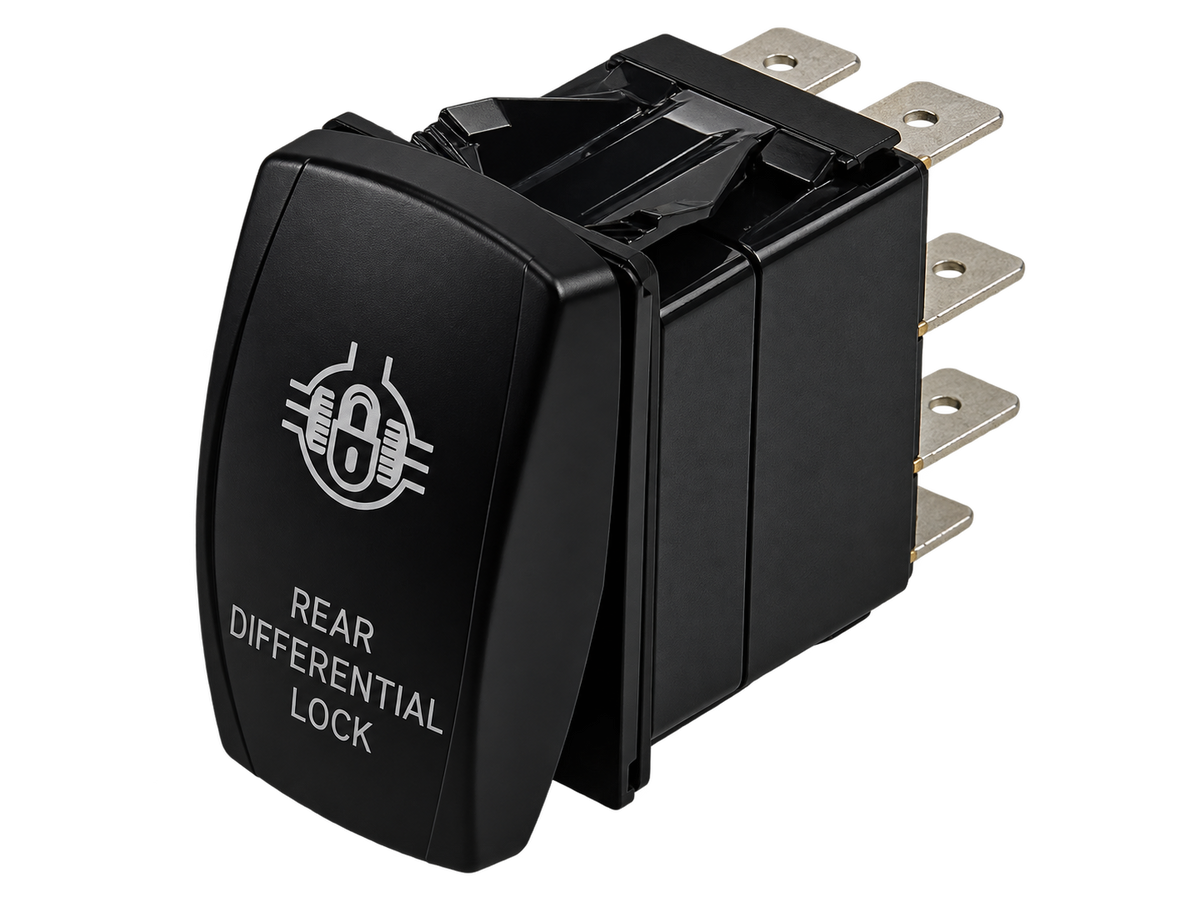

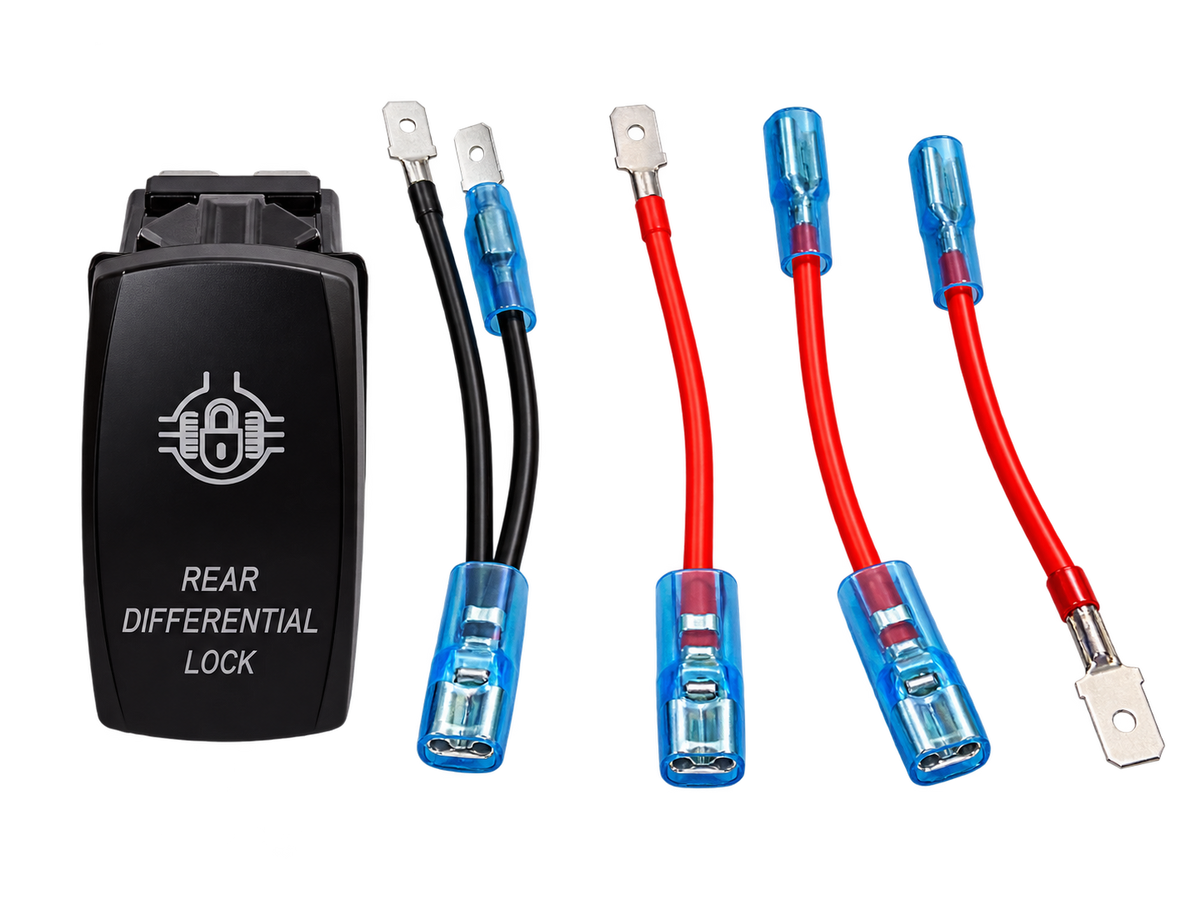

Rear Differential Lock Rocker Switch – 5 Pin

Upgrade your 4WD setup with a clean, factory-style Rear Differential Lock Rocker Switch, designed to provide simple and reliable control of your rear diff lock system.

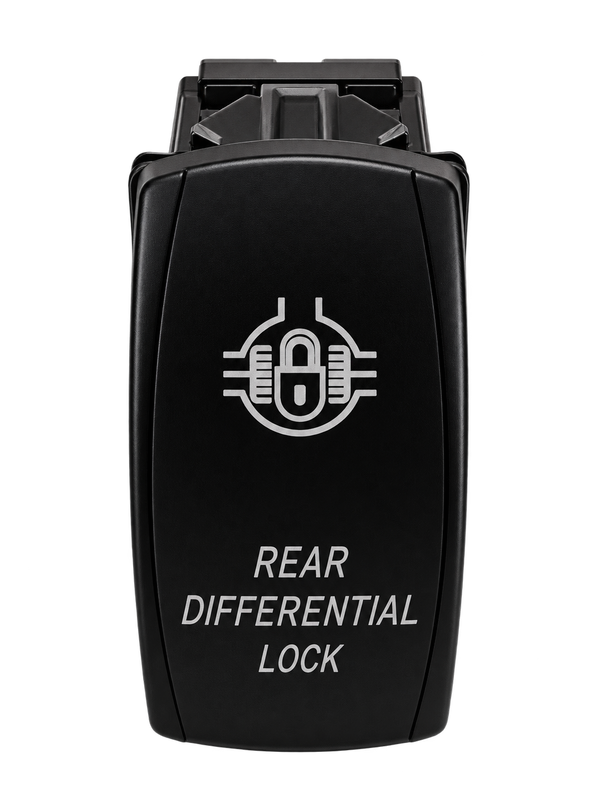

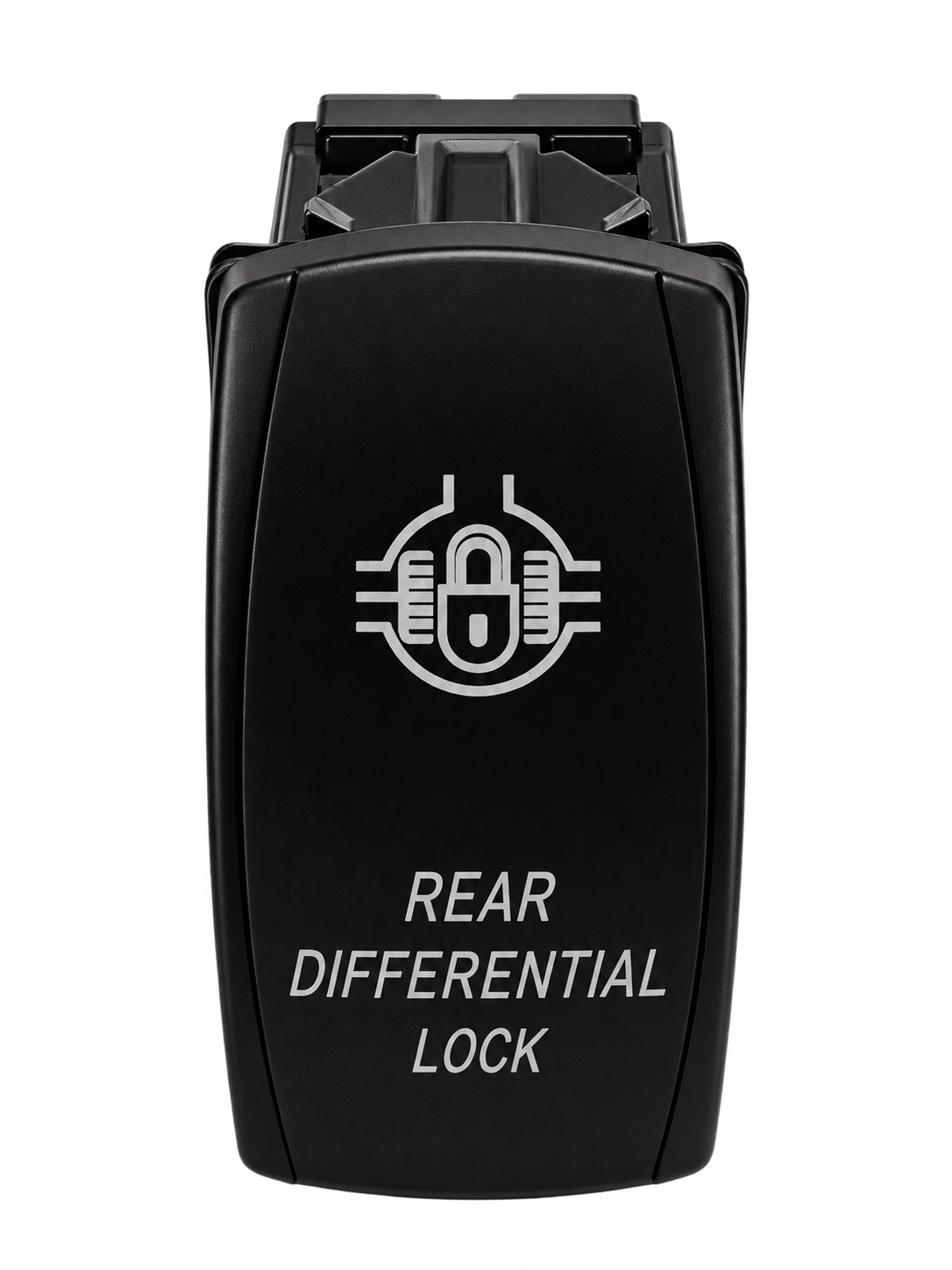

Featuring a clear Rear Differential Lock symbol and easy-to-read labelling, this switch gives your dash a neat OEM-style finish while making your diff lock easy to identify and operate.

The 5-pin design allows the switch to be wired with either an accessory-switched power source or constant battery power, with separate illumination circuits for the upper and lower switch lights.

Features:

• 5-pin rocker switch
• Rear Differential Lock design
• OEM-style appearance
• Dual illumination
• Can be wired to accessory or constant power

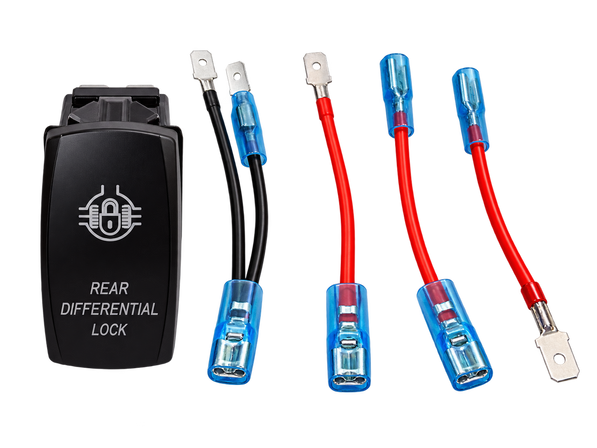

• Supplied with wiring leads/connectors
• Simple installation
• Suitable for 12V automotive and 4WD applications
• Ideal for aftermarket diff lock installations and custom electrical setups

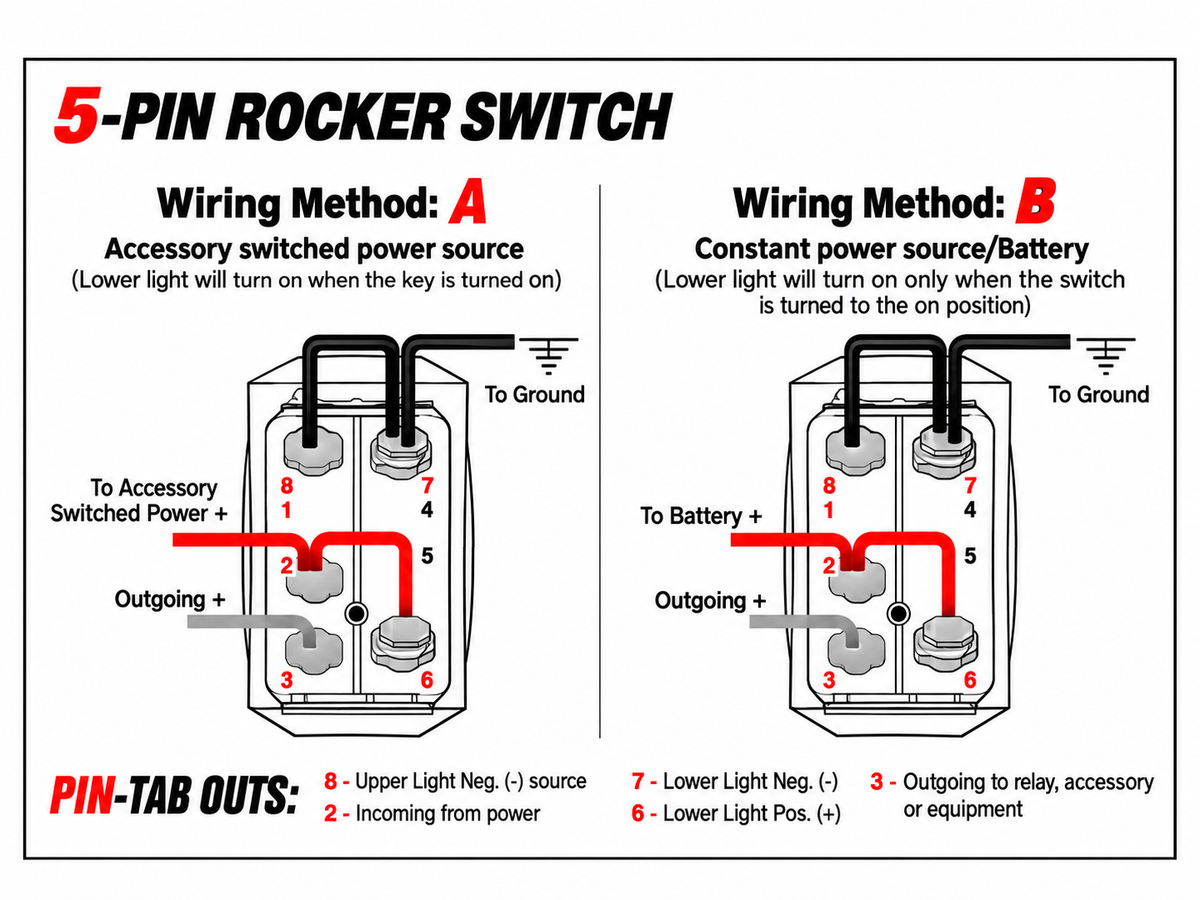

Pin Functions:

• Pin 8: Upper light negative (-)
• Pin 2: Incoming power
• Pin 7: Lower light negative (-)
• Pin 6: Lower light positive (+)
• Pin 3: Output to relay, accessory or equipment

For best results, we recommend using the switch to trigger a suitable relay rather than powering high-current accessories directly.
