Air Compressor Switch

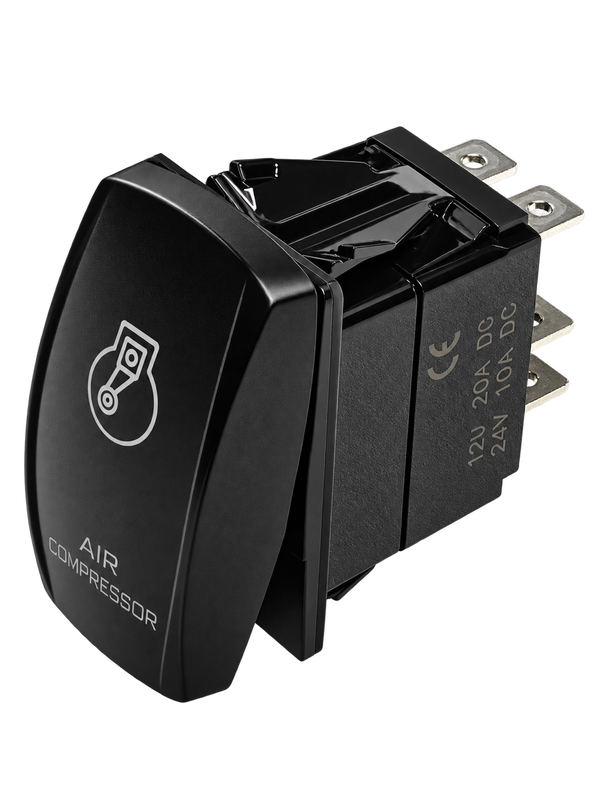

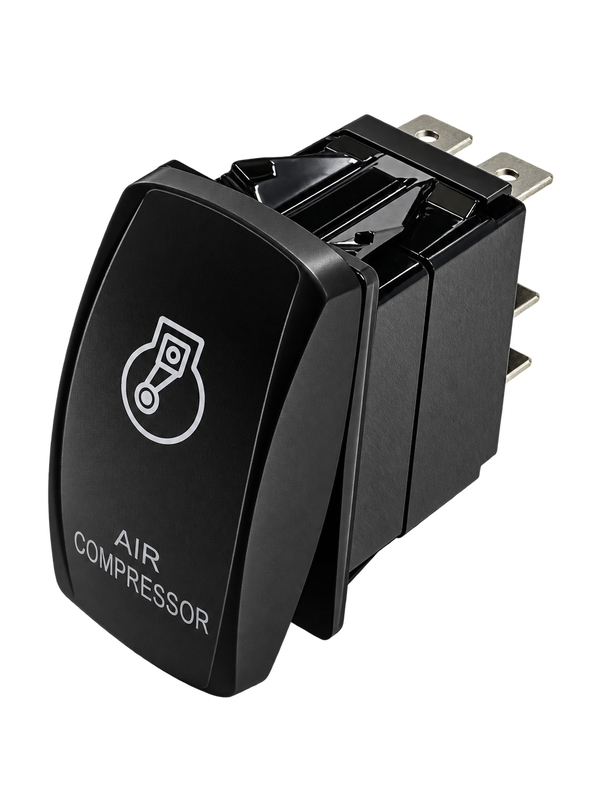

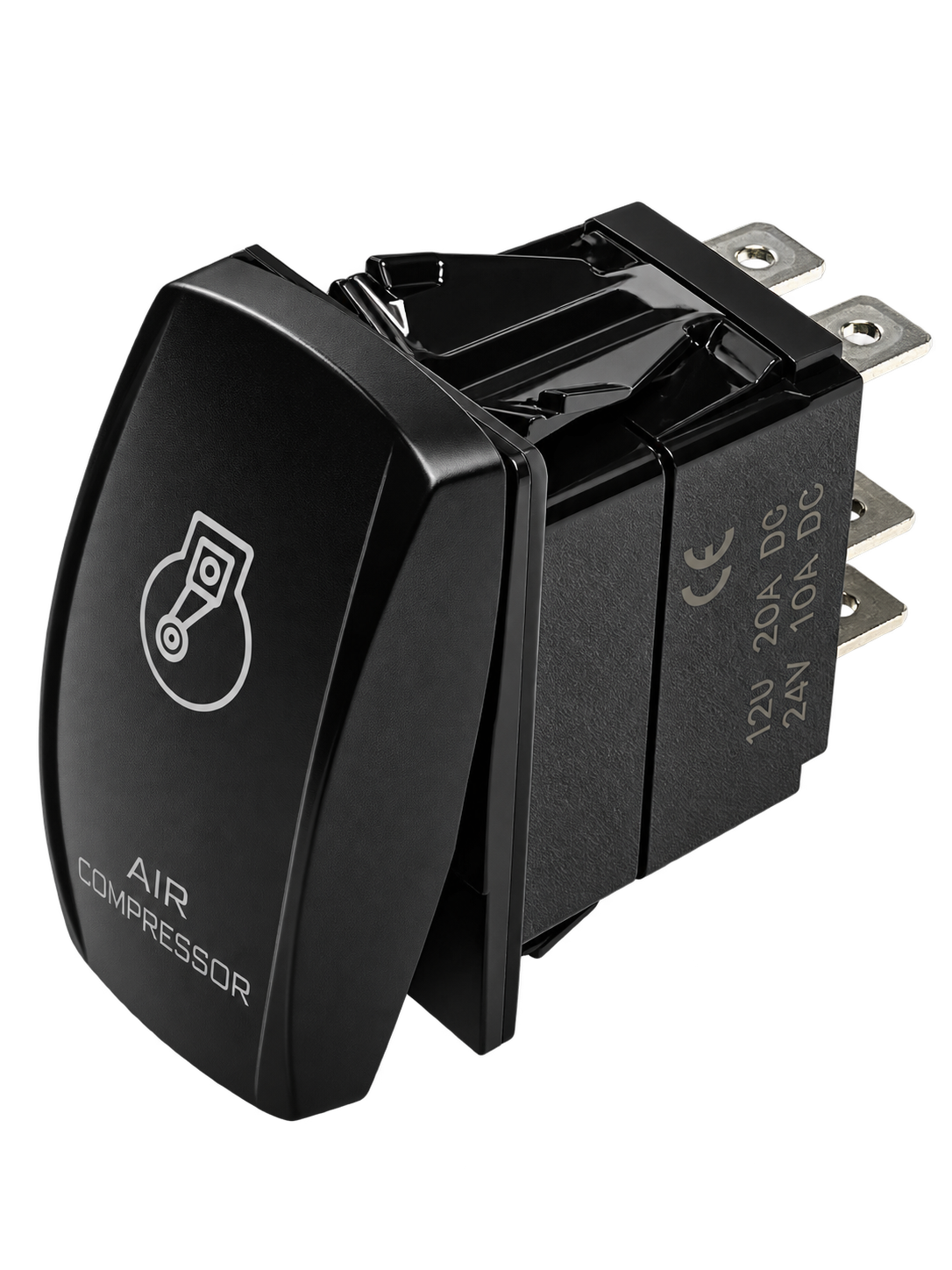

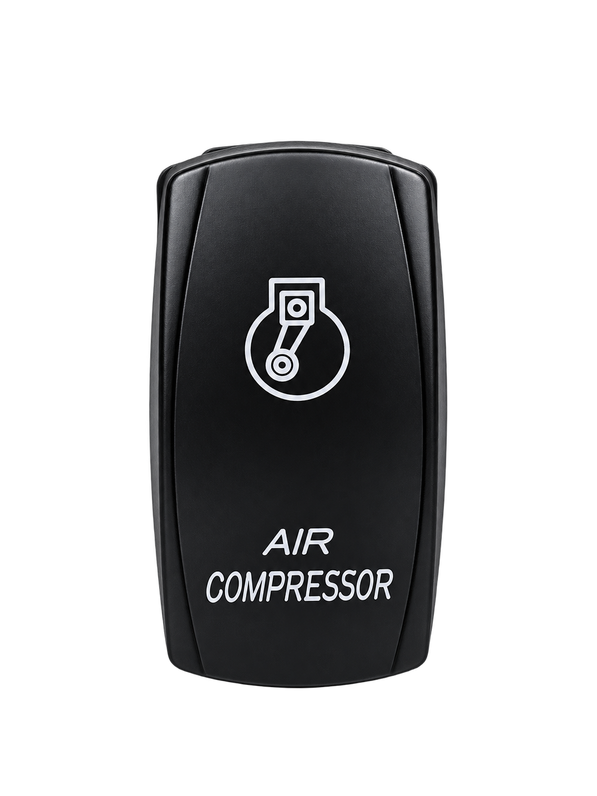

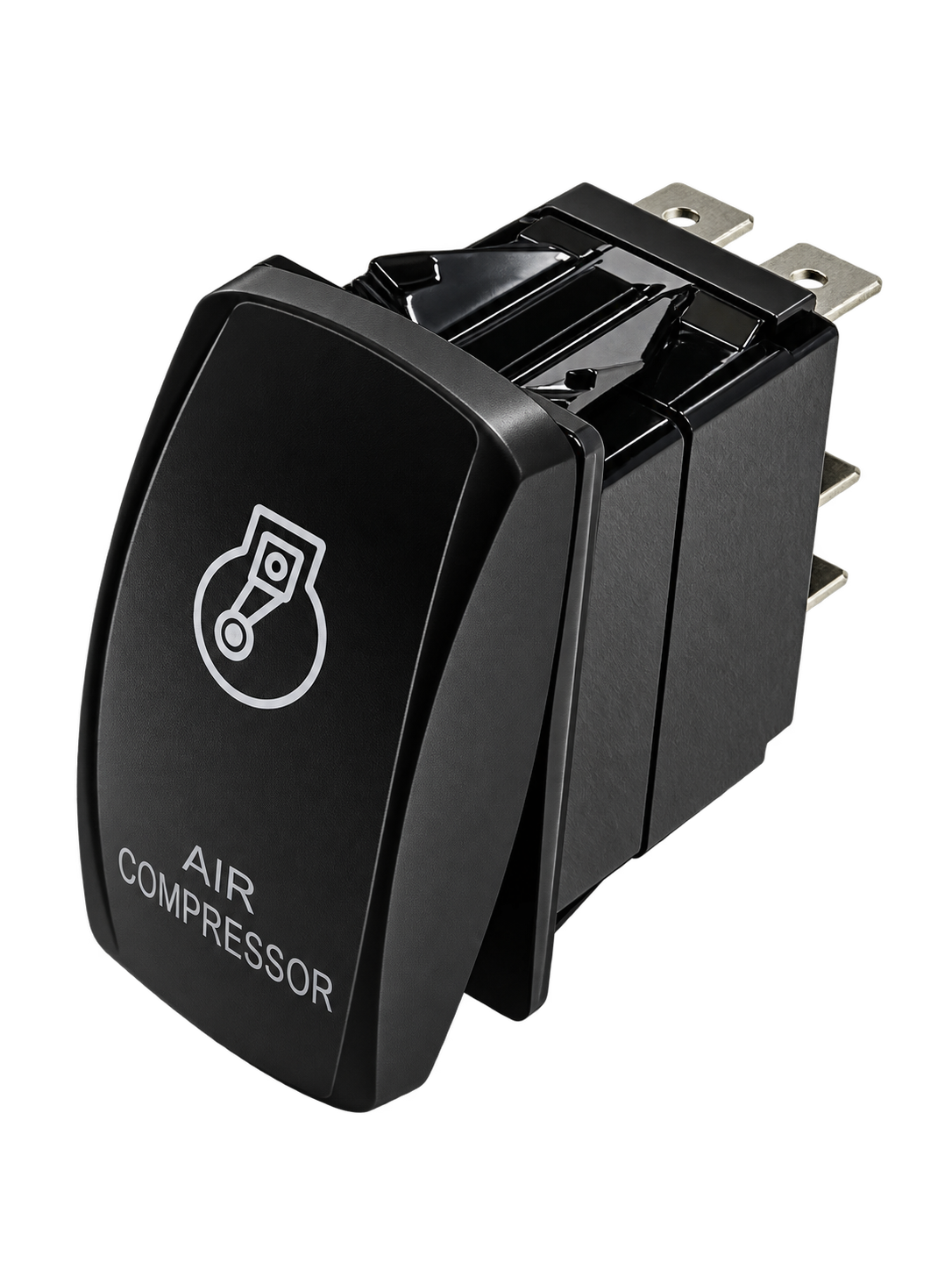

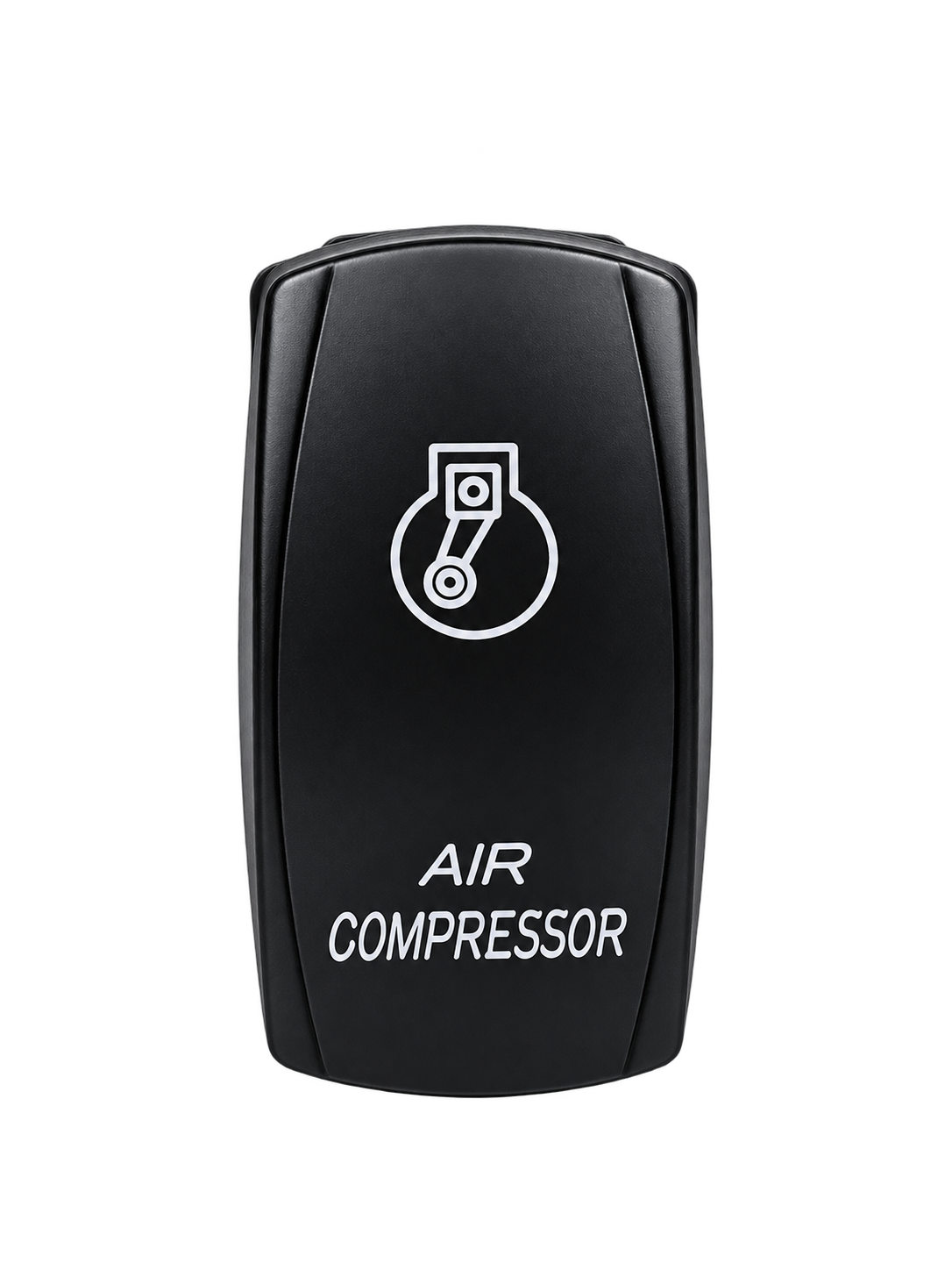

Air Compressor Rocker Switch – 5 Pin

Give your 4WD electrical setup a clean, factory-style finish with the Air Compressor Rocker Switch – 5 Pin, designed for simple and reliable control of your onboard air compressor system.

Featuring a clear Air Compressor symbol and easy-to-read labelling, this switch makes it easy to identify your compressor control while maintaining a neat OEM-style appearance in your dash or switch panel.

The 5-pin design allows the switch to be wired using either an accessory-switched power source or constant battery power, with separate illumination circuits for the upper and lower switch lights.

Features:

• 5-pin rocker switch
• Air Compressor design
• OEM-style appearance
• Dual illumination
• Can be wired to accessory or constant power

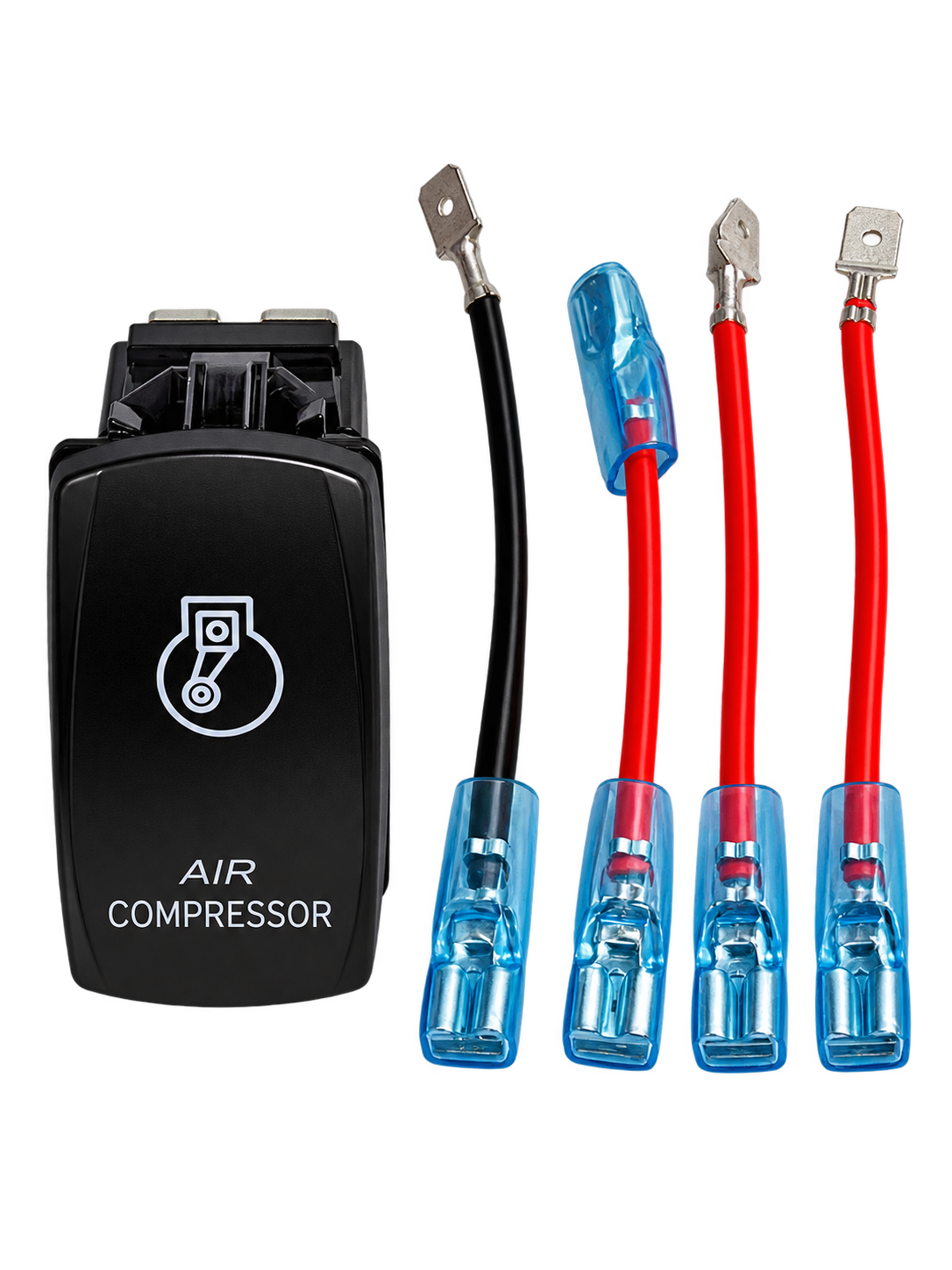

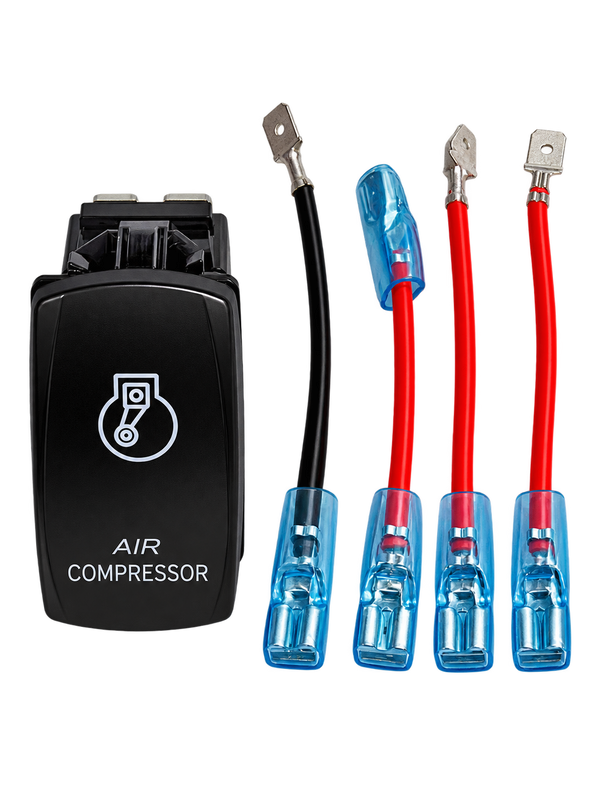

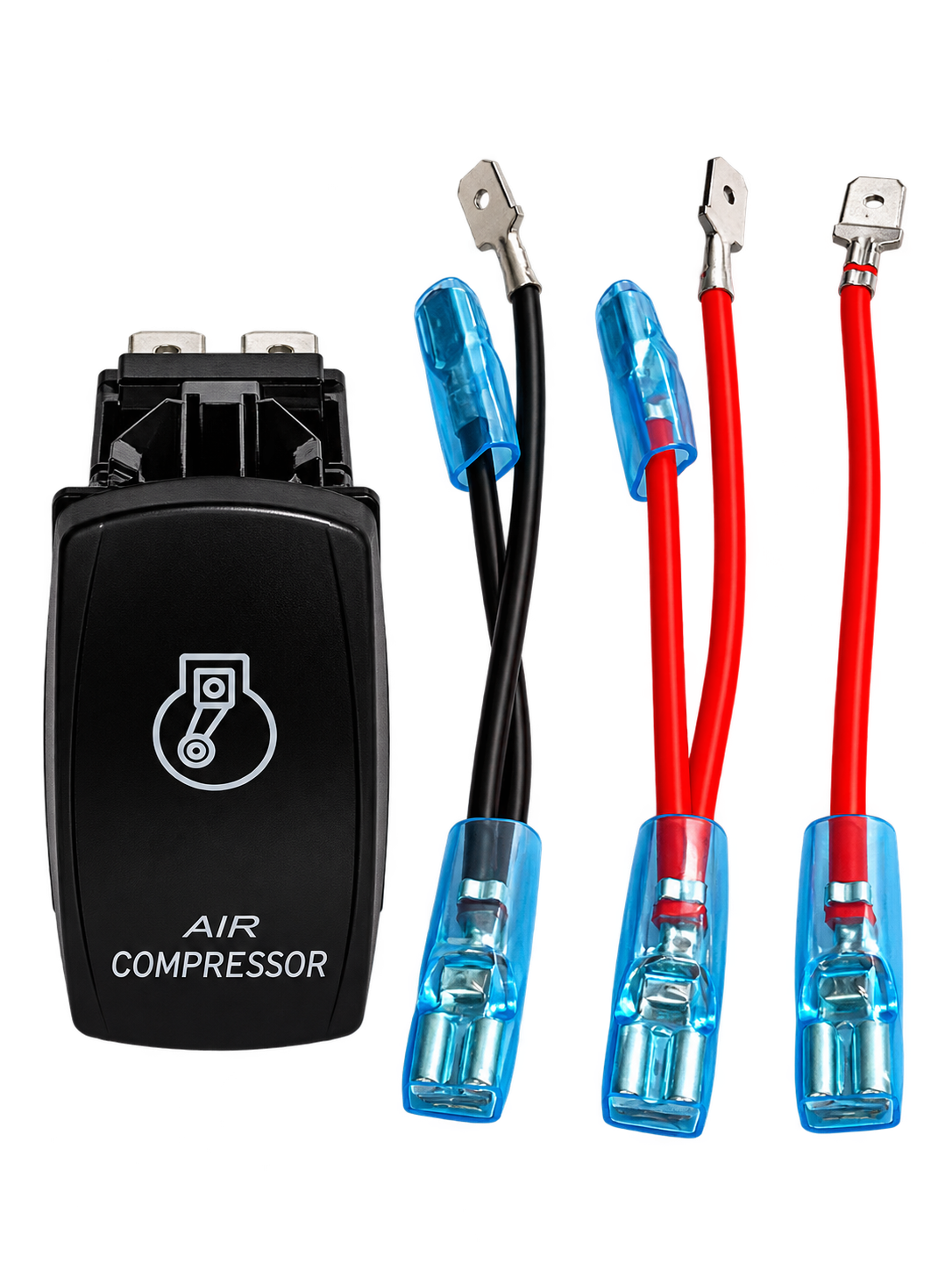

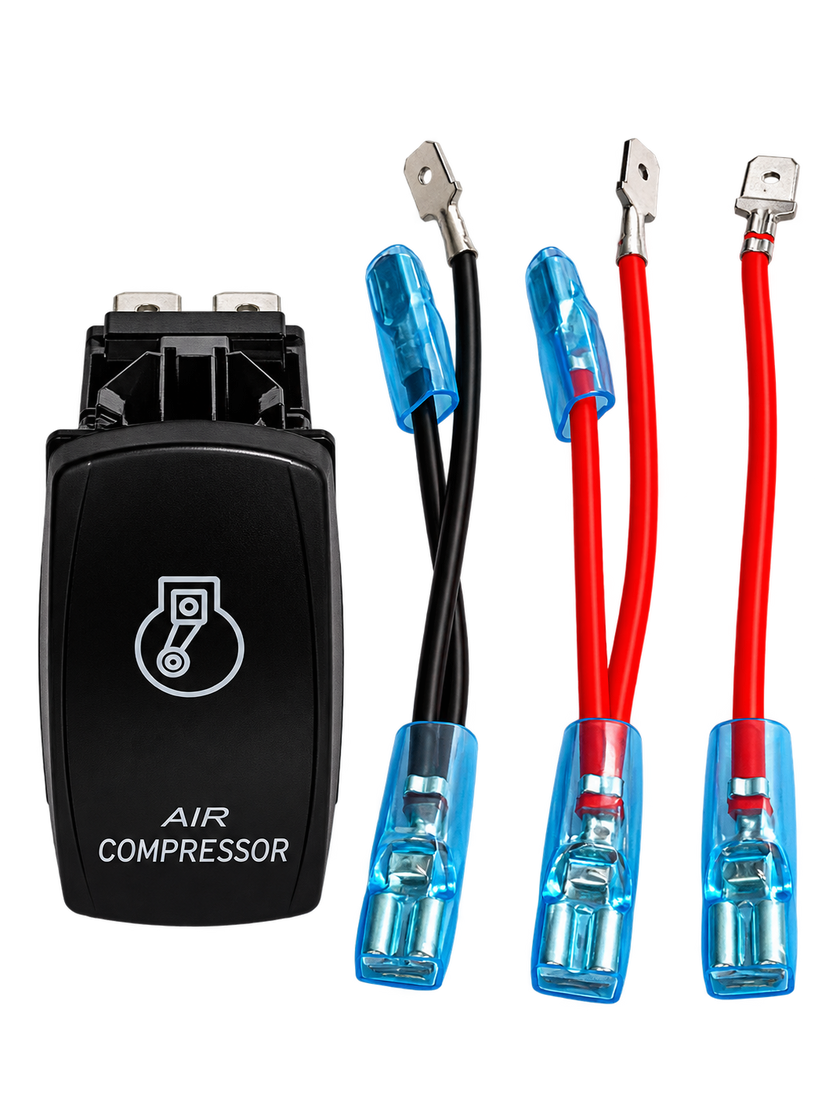

• Supplied with wiring leads/connectors
• Simple installation
• Suitable for 12V automotive and 4WD applications
• Ideal for onboard air compressor setups and custom electrical systems

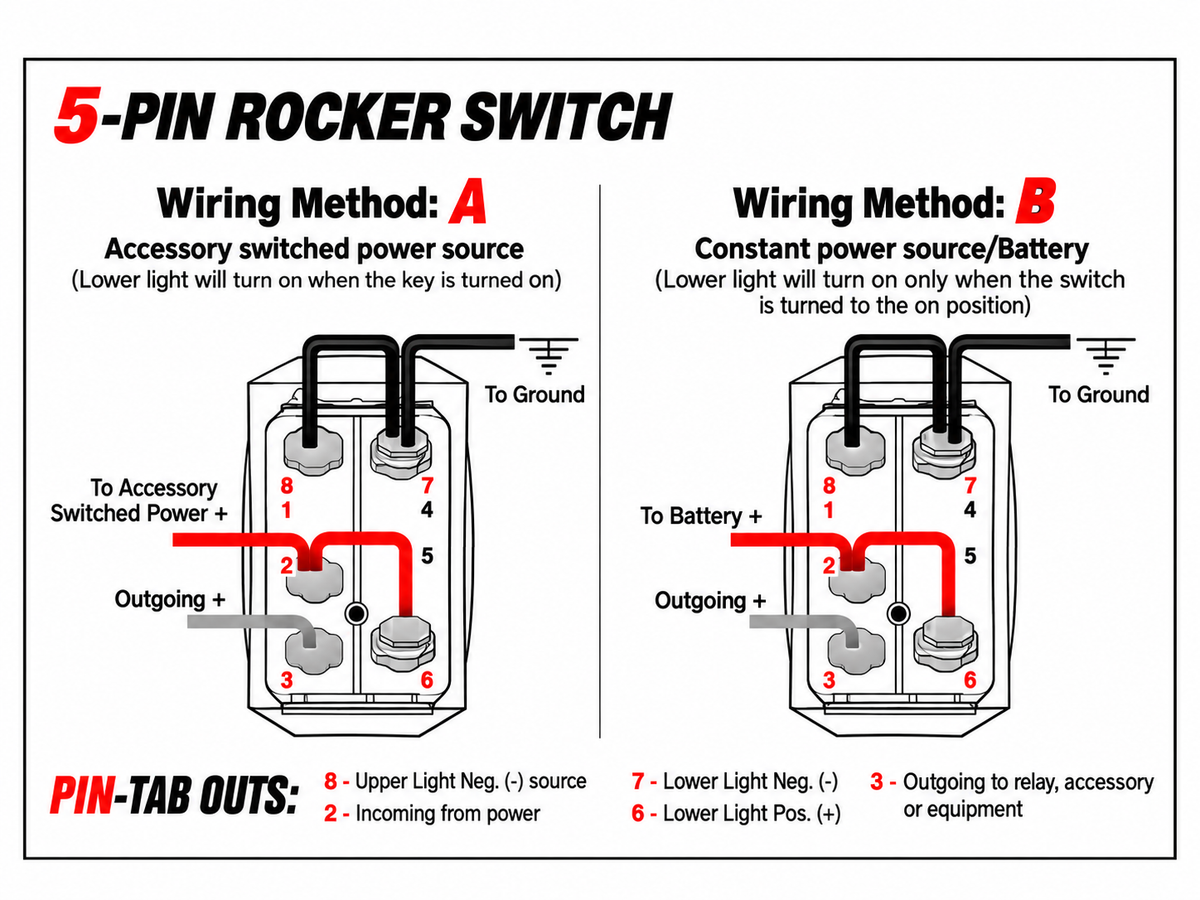

Pin Functions:

• Pin 8: Upper light negative (-)
• Pin 2: Incoming power
• Pin 7: Lower light negative (-)
• Pin 6: Lower light positive (+)
• Pin 3: Output to relay, accessory or equipment

For best results, we recommend using the switch to trigger a suitable relay rather than powering a high-current air compressor directly.
